Wireless Access Points · Wi-Fi 7

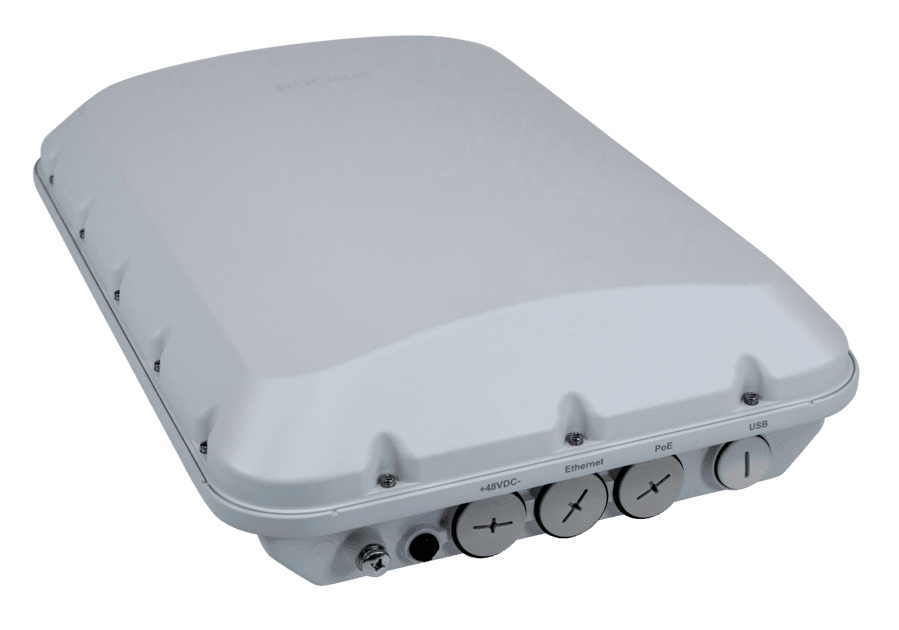

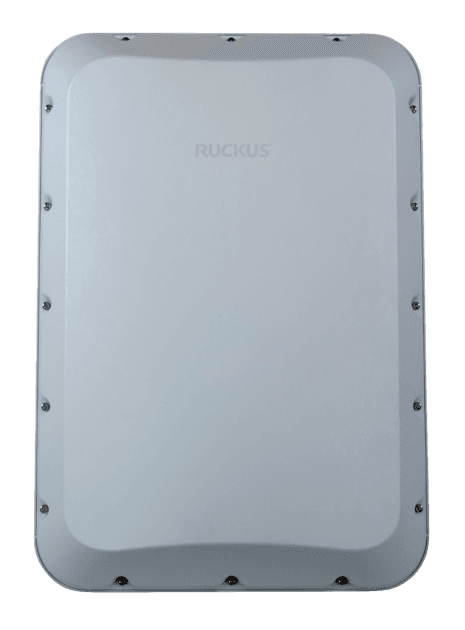

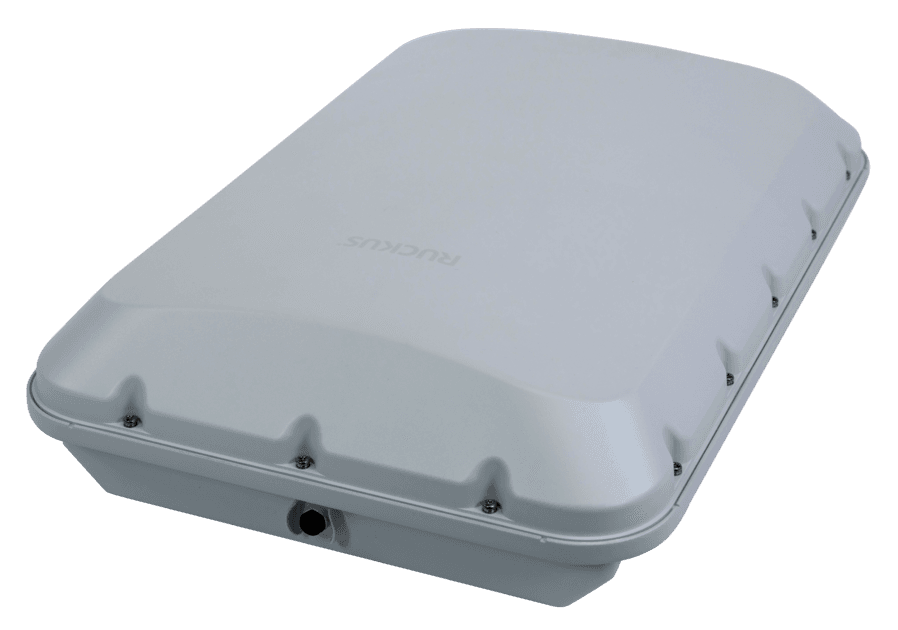

RUCKUS T670sn Outdoor Access Point

Reference T670SN

High-Performance Wi-Fi 7 2x2:2 Outdoor Access Point with 9.3 Gbps max rate

Wi-Fi 7Wi-Fi Generation
9340 Mb/sCombined Max PHY Rate
768Concurrent Users

RUCKUS T670sn Outdoor Access Point Features

Outdoor venues like stadiums and arenas present some of the most demanding wireless challenges due to high client density. The RUCKUS® T670sn access point (AP), powered by the latest Wi-Fi 7 standard combined with RUCKUS unique patented technologies, delivers multi-gigabit Wi-Fi to meet the ever-growing demand for top-tier performance. Designed for durability, the T670sn is IP-67 rated to withstand the harsh conditions of outdoor deployments.

T670sn Programmable Sector Antenna

The T670sn programmable sector antenna enhances outdoor Wi-Fi AP deployments by offering flexible, software-defined coverage that adapts to different environments. It can be switched between narrow beam for high-density areas and wide beam for broader coverage, offering several key benefits.

Better Deployment Flexibility
Dynamic Adaptation for Changing Needs
Simplified Network Planning

This dynamic control minimizes interference while maximizing signal strength and data rates, leading to better connectivity and performance in targeted areas. Additionally, the ability to modify coverage patterns remotely eliminates the need for physical adjustments, making it ideal for scenarios with changing network demands, such as seasonal events or infrastructure expansions.

The RUCKUS T670sn is a high density, high throughput, low latency tri-band AI-driven Wi-Fi 7 outdoor AP engineered to meet the demands of the most challenging environments, providing unprecedented performance in high-density settings such as stadiums, public venues, and smart cities.

The RUCKUS T670sn is driven by RUCKUS AI™, a cloud service for network assurance and business intelligence to enhance Wi-Fi 7 network resilience, and enhanced by the programmable sector antenna system built into the AP. These superior technologies enable:

Superior Throughput and Capacity
Reduced Latency
Adaptive Resilience

The RUCKUS T670sn supports two Radio configurations to support different regulatory domains:

Tri-band (2.4 GHz +5 GHz +6 GHz) for the US and Canada: This configuration supports Wi-Fi 7 simultaneously on 2.4GHz, 5GHz, and 6GHz frequency bands, with a maximum physical data rate of 9.336 Gbps.
Dual-band (2+5) for global use: This setup offers Wi-Fi 7 simultaneously on both 2.4GHz and 5GHz frequency bands, with a maximum physical data rate of 6.454 Gbps.

Better Deployment Flexibility
Dynamic Adaptation for Changing Needs
Simplified Network Planning

Specifications

RUCKUS T670sn Outdoor Access Point — Specifications
Specification	Value
Product classification
Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Product Type	Outdoor access point
Product Brand	RUCKUS®
General Specifications
Antenna Gain	Up to 12.8 dBi
ChannelFly	Yes
Concurrent Users	768
Controller Support	RUCKUS One™ \| RUCKUS SmartZone \| RUCKUS Unleashed™
Ethernet Ports	1 x 1 / 2.5 / 5 GbE \| 1 x 1 GbE
Number of Radios	Tri-Radio
PD-MRC	Yes
PHY Rate at 2.4 GHz, maximum	689 Mb/s
PHY Rate at 5 GHz, maximum	5765 Mb/s
PHY Rate at 6 GHz, maximum	5765 Mb/s
Combined Max PHY Rate	9340 Mb/s
Radio Chains and Streams	2x2:2
Rx Sensitivity at 2.4 GHz	-97 dBm
Rx Sensitivity at 5 GHz	-100 dBm
Rx Sensitivity at 6 GHz	-96 dBm
SmartMesh	Yes
Venue Type	Hospitality \| Public Venue \| Retail \| Transportation
Venue Sub-Type	Harbor Port \| Large Public Venue \| Outdoor Resort Spaces \| Transit Stations
Wi-Fi Bands Supported	2.4 GHz \| 5 GHz \| 6 GHz
Wi-Fi Generation	Wi-Fi 7
Wi-Fi Interface Standard	IEEE 802.11a/b/g/n/ac/ax/be
Environmental Specifications
Operating Temperature	-40 °C to +65 °C (-40 °F to +149 °F)
